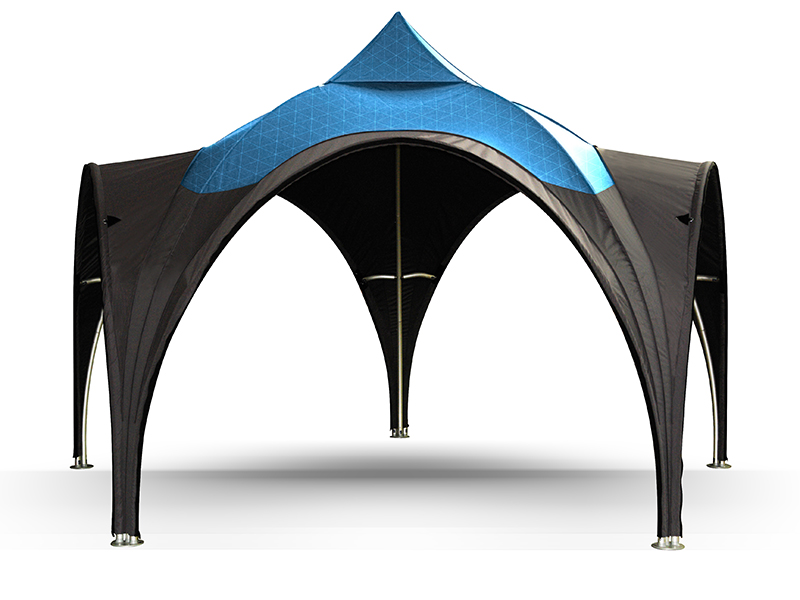

The Dome tent is designed for customers who appreciate originality and unique solutions. The tent is based on a pentagonal plan and has a dome shape which effectively distinguishes it from standard shelters. The Dome frame is made of aluminium profiles with a diameter of 43 mm. The profiles are easily joined with special buttons. Dedicated struts stiffen the frame and ensure its stability. Frame components are joined together without any screws. The roof is spread on the erected frame. The walls are fixed with brackets.
A properly anchored and secured tent can withstand gusts of wind reaching a speed of 100km/h and meets the strict requirements of PN-EN 13782:2015-2007.
The roof and walls are made of robust, waterproof polyester fabric. Prints are made digitally which allows us to use any colours at the stage of designing tent prints. Apart from this, a basic palette of fabrics in 20 colours of which the Dome tent can be made is available.
The dome frame of aluminium profiles with section of 43 mm guarantees stability of the tent at wind gusts reaching 100 km/h.
SPACE
A free space under the canopy, created after eliminating the scissor structure and ropes, allows you to put in additional advertising media, e.g. roll-ups.
SAFETY
Each tent comes with a kit of anchors and guy ropes. Water weights to stabilise the tent on the soft ground are also available.
LARGE ADVERTISING SURFACE
Large sidewalls make it possible to expose an advertisement of your brand or product. All types of advertising prints can be made in screen-printing or dye-sublimation technology.
Technical Details
Dome
size
4,7 × 4,5 m
entrance height
2,1 m
entrance widht
2,90 m
height
3,5 m
surface
14,5 m²
pop-up time
30 minutes
weight
51 kg
transport dimensions (2 bags)
160 x 40 x 40 cm 70 x 40 x 40 cm
Wall types
Full sidewall
Wall with zipped door
Wall with panel window
Set contains
Roofed structure
Pins for legs and guy ropes with anchors
Colour palette
Covering of the Dome tents can be in any colour with customised prints made in screen-printing or dye-sublimation technology. The Dome tents can be also ordered in 20 basic, solid fabric colours.
Wireless and waterproof (IP68), fastened with hook-and-loop straps. Maximum battery life up to 77 hours. It has 3 levels of brightness and "flash" and "power bank" functions (battery capacity 10400mAh). Full charge time is 8h.
Sand weights
The sand weight (27,5 kg) has hook-and-loop fasteners attached vertically to the leg of the tent.
Floor
Folded with elements 25x25 cm. Available in colours: gray, green, red, black, blue and white.
Tables and chairs
Tables and chairs are made of powder coated steel and polyethylene.
Emergency Kit
Secure the tent to the wind speed of 100 km / h The set includes: anchor with the length 45 cm, anchor ropes, 4 kg hammer, a device for pulling the anchor.
